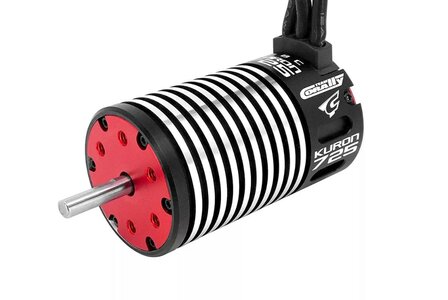

Team Corally - Electric Motor - Kuron 725 - 4-Pole -2150 KV - Brushless - Sensorless - 1/8

Team Corally - Electric Motor - Kuron 725 - 4-Pole -2150 KV - Brushless - Sensorless - 1/8


General Info

Brand

Team Corally

Barcode

8718057215798,00

Item Nr

C-54054

Motor - Specs

Motor - Type

Brushless - Sensorless

Motor - Klasse

Sport Motor

Motor - Toepassing

• 1/8 Buggy
• 1/8 SCT
• 1/8 GT - Rally Game
• 1/10 SCT 2WD

Motor - Compliant



Motor - Spanningsbereik ingang (V)

2S - 4S Li-Po

Motor - Turns (T)



Motor - KV (Rpm/V)

2150,00

Motor - RPM Max.



Motor - Timing

Fixed Timing

Motor - polen

4-Pole Rotor

Motor - Stator



Motor - Dimensions

Motor - Dia. ø (mm)

40,00

Motor - Length (mm)

68,00

Motor - Shaft Dia. ø (mm)

5.0 mm

Motor - Shaft Length (mm)

18,50

Motor - Mounting Holes

M4 @ 25.4 mm

Motor - Wires (AWG)

12 AWG

Motor - Connector

Bullit 4.0mm

Motor - Ball Bearing - Front

5x16x5 mm

Motor - Ball Bearing - Rear

5x13x4mm - 695ZZ
