RC auto 58745 1:10 RC Porsche 911 GT3 R 992 met certificaat Bouwpakket

RC auto 58745 1:10 RC Porsche 911 GT3 R 992 met certificaat Bouwpakket

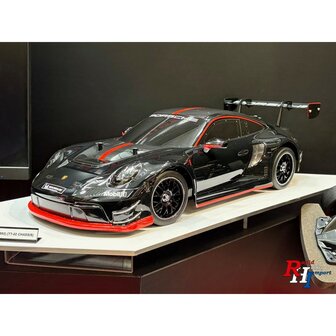

Tamiya 1/10 Porsche 911 GT3 R (992) TT-02 Chassis 58745

Tamiya 58745 1:10 RC Porsche 911 GT3 R (992)

Artikelnummer: 58745
EAN: 4950344587452

Dit product wordt vervaardigd door:
Tamiya Inc.
3-7 Ondabara, Suruga Ward
Shizuoka, 422-8022
Japan
www.tamiya.com

Verantwoordelijk in de EU is:
TAMIYA-CARSON Modellbau GmbH & Co. KG
Werkstraße 1
90765 Fürth
Fürth, Duitsland
www.tamiya.de

Deze kit komt met een certificaat om mee te kunnen doen aan de Nederlandse TamiyaCup.

This R/C model assembly kit recreates the Porsche 911 GT3 (992) with a stunning and highly detailed polycarbonate body. The kit is based on the beginner friendly and highly customizable TT-02 chassis. The full-size 7th generation model, Porsche 911 GT3 features double-wishbone front suspension – changed from MacPherson strut – and a horizontally opposed 6-cylinder engine. Lightweight components and aerodynamic design extensively improved its performance. Carbon fiber reinforced plastic front hood, which was employed for production vehicles for the first time, gives lightweight design. Also, hanging type wing stay supply greater downforce and lower drag.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black 10-spoke wheels use tread patterned semi-pneumatic tires.

Specifications
★Length: 426mm, width: 188mm, height: 131mm
★Wheelbase: 257mm
★Tire width/diameter: 27/67mm (front & rear)
★Bathtub-type frame
★Shaft-driven 4WD
★Front/rear 4-bevel resin differentials
★3-piece steering tie-rod
★4-wheel double wishbone suspension
★Front/rear friction dampers
★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
★Type 540 motor
★Electronic Speed Controller (ESC) Included.
