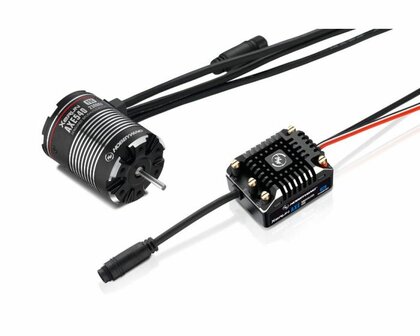

Hobbywing 38020248 XERUN AXE+540 FOC 1200KV ESC plus motor set

Hobbywing 38020248 XERUN AXE+540 FOC 1200KV ESC plus motor set

XeRun Axe Brushless Power System

FOC (Field-oriented Control) for Super Linearity & High
Torque & Extreme Slience

New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some
have never experienced. Field-oriented Control is the name of this new tech, and is something all new to the scale trail, rock racing,
and rc world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining
extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all
driving conditions. This greatly improves down hill driving giving this system the ability to drive down hill under complete control.
FOC technology also makes the whole system extremly silent, the motor doesn't create the annoying PWM noise when it is running.

Specifications

• Product Name: XeRun Axe Brushless Power System

• Product Number: 30112100

Type

• Scale: 1/10^th

• Brushed/Brushless: BL

• Sensored/Sensorless: SD FOC

• Waterproof

• YES（IP67）

• Applications: 1/10^thRock Crawler

Specifications

• Cont./Peak Current: 60A/360A

• Input Voltage: 2-3S Lipo/6-9 Cell NiMH

• BEC Output: Switch Mode:6V/7.4V@3A

Wires & Connectors

• Input Wires: Red-14AWG-200mm*1/ Black-14AWG-200mm*1

• Output Wires: No

• Input Connectors: XT60

• Output Connectors: Solder Posts

ESC Programing via

• SET Button on ESC: Not Supported

• LED Program Box: Not Supported

• LCD Program Box: Not Supported

• WiFi Module: Not Supported

• Bluetooth Connection: Supported

Firmware

• Firmware Upgrade: Supported

Size & Weight

• Size: 47.4x36.2x24.6mm

• Weight: 82g
